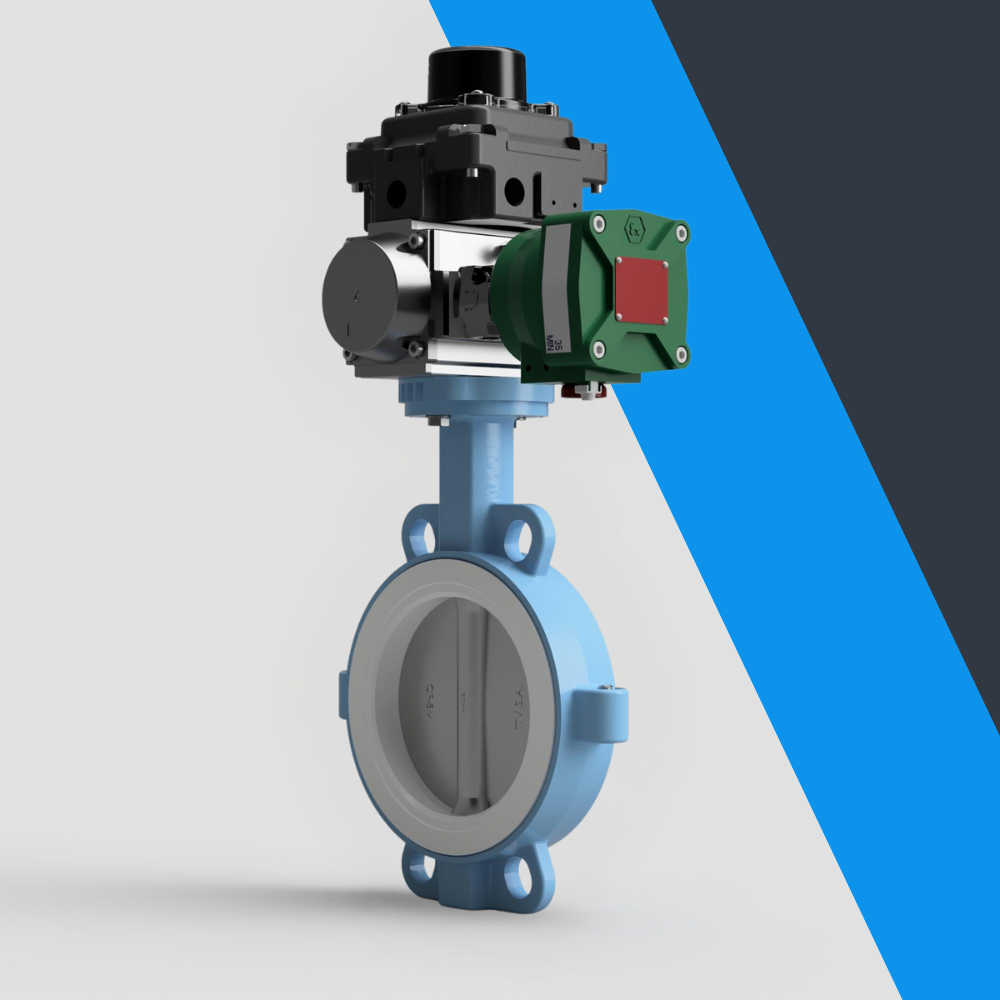

V-Tork Actuated TTV Wafer PTFE Seat Butterfly Valves (ATEX Area Accessories)

The V-Tork Actuated TTV Wafer PTFE Seat Butterfly Valves are designed for use in challenging industrial environments, especially those requiring ATEX compliance. These valves provide exceptional control and reliability in hazardous areas, making them ideal for applications involving chemicals, gases, and other corrosive media. The combination of a durable PTFE seat and a robust wafer design ensures long-lasting performance with minimal maintenance.

Key Features:

• ATEX Certified: Specifically designed for use in explosive atmospheres, ensuring safety and compliance.
• PTFE Seat: Offers excellent chemical resistance and low friction, extending the valve’s service life.
• Wafer Design: Compact and lightweight, allowing for easy installation between flanges.
• High Torque Actuation: V-Tork pneumatic or electric actuators provide precise control and fast response times.
• Versatile Application: Suitable for a wide range of industries, including oil and gas, chemical processing, and pharmaceuticals.

Specifications:

• Size Range: DN 40 to DN 400
• Body Material: Ductile Iron, Stainless Steel
• Disc Material: Stainless Steel, Bronze, or Duplex
• Seat Material: PTFE (Polytetrafluoroethylene)
• Pressure Rating: PN10/PN16
• Temperature Range: -20°C to +150°C
• Actuation Options: Pneumatic Double Acting, Pneumatic Spring Return, Electric (On/Off or Modulating)
• Compliance: ATEX Directive 2014/34/EU
