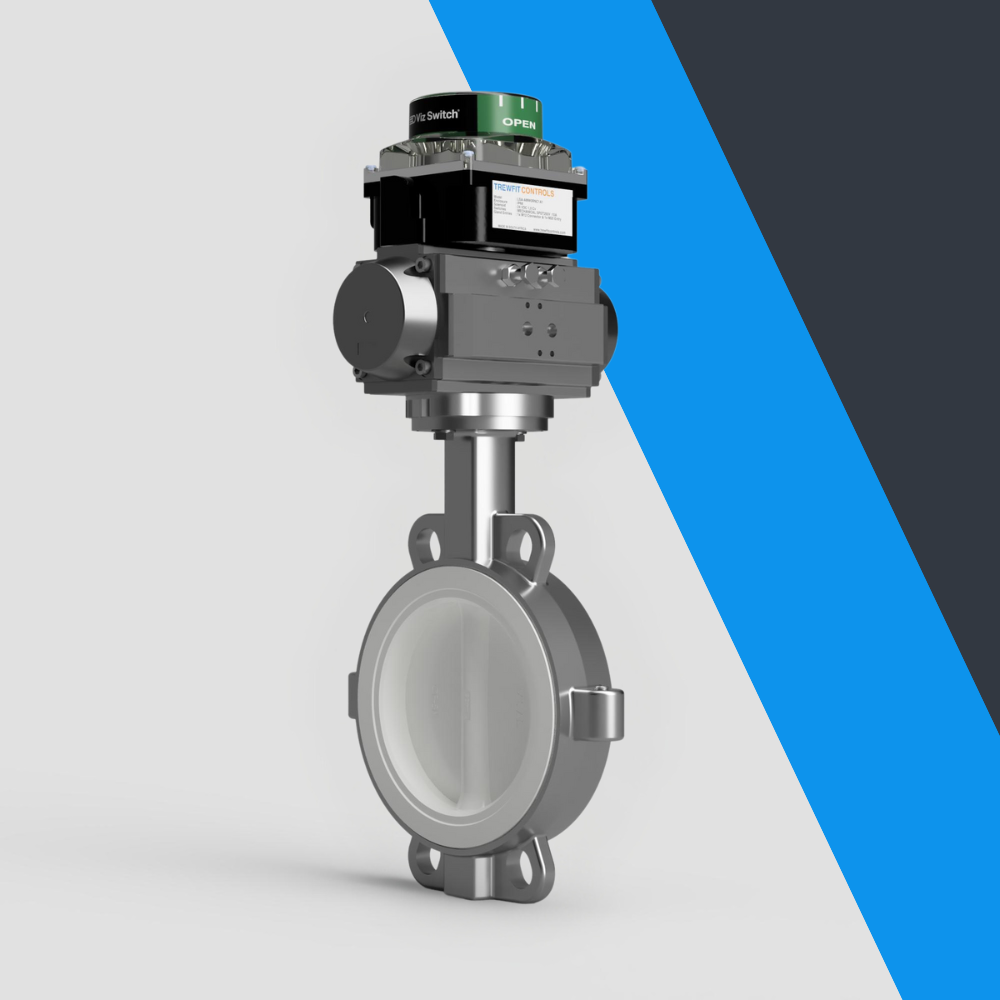

V-Tork Actuated TTV Wafer PTFE Lined Stainless Steel Butterfly Valves (Safe Area Switchbox)

The V-Tork Actuated TTV Wafer PTFE Lined Stainless Steel Butterfly Valves are designed for high-performance applications requiring chemical resistance and reliability. These valves are ideal for handling aggressive media in industries such as chemical processing, water treatment, and food and beverage. Equipped with a PTFE lining, the valve offers superior corrosion resistance, while the stainless steel body ensures durability. The integration of a Safe Area Switchbox provides enhanced control and monitoring, making it suitable for non-hazardous environments.

Key Features:

• PTFE Lining: Provides excellent chemical resistance, ideal for corrosive applications.
• Stainless Steel Construction: Ensures long-term durability and resistance to environmental factors.
• Safe Area Switchbox: Enables precise control and monitoring in non-hazardous areas.
• Compact Wafer Design: Allows easy installation between flanges, saving space.
• Low Torque Requirement: Reduces energy consumption, making it efficient for automated systems.
• Versatile Application: Suitable for use in a wide range of industries, including chemical, pharmaceutical, and water treatment.

Specifications:

• Body Material: Stainless Steel (316)
• Lining Material: PTFE
• Disc Material: Stainless Steel (316)
• Size Range: DN40 to DN400
• Pressure Rating: PN10/16
• Temperature Range: -20°C to +200°C
• Connection Type: Wafer
• Actuator Type: Pneumatic V-Tork Actuator
• Switchbox Type: Safe Area Switchbox (Non-ATEX)
• End Connections: ANSI, DIN
