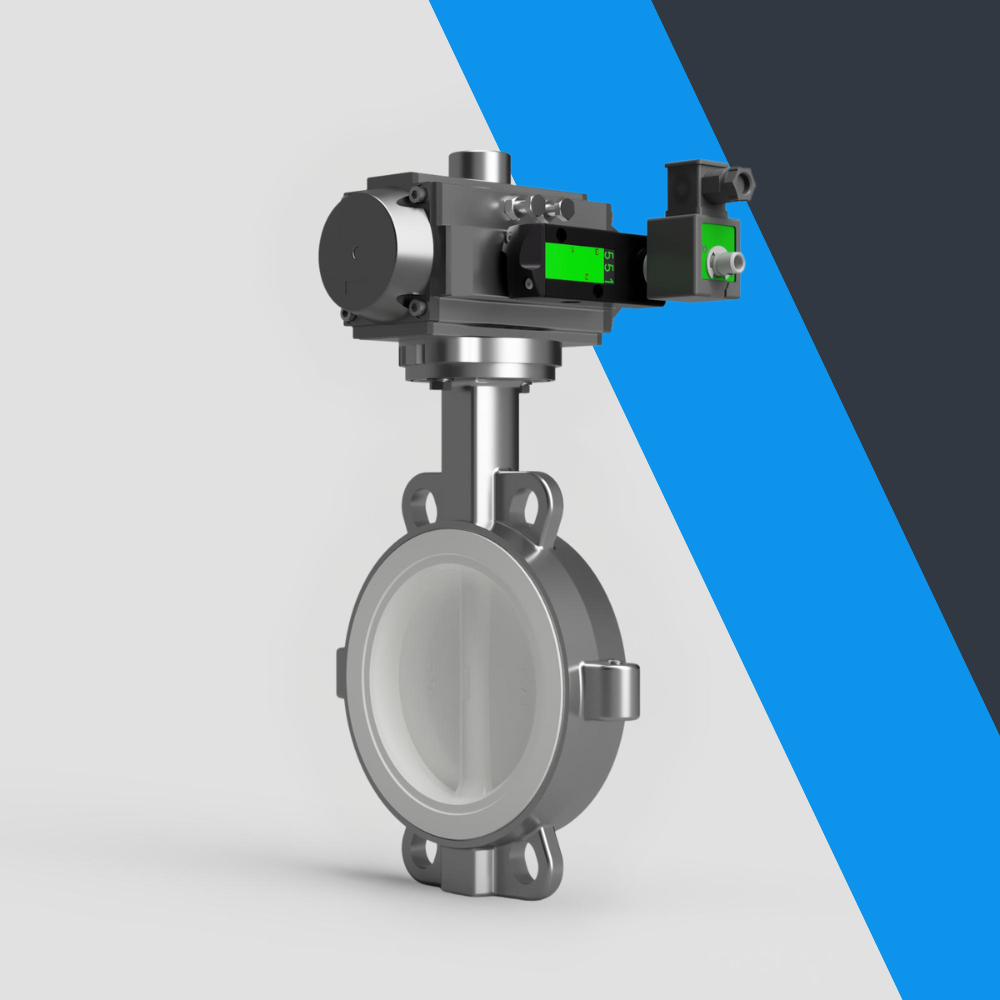

V-Tork Actuated TTV Wafer PTFE Lined Stainless Steel Butterfly Valves (Safe Area Solenoid)

The V-Tork Actuated TTV Wafer PTFE Lined Stainless Steel Butterfly Valves, equipped with a Safe Area Solenoid, are engineered for precise control and reliable performance in demanding industrial applications. Designed with a PTFE lining and a robust stainless steel construction, these valves offer superior corrosion resistance, making them ideal for handling aggressive media. The V-Tork actuator ensures seamless operation, delivering consistent performance even in the most challenging environments.

Key Features:

• PTFE Lining: Provides excellent chemical resistance and ensures a long service life.
• Stainless Steel Construction: Enhances durability and withstands corrosive environments.
• Safe Area Solenoid: Designed for safe operation in non-hazardous areas, offering dependable control.
• Compact Wafer Design: Space-saving design that fits easily between flanges.
• Low Torque Operation: Minimizes energy consumption while maintaining high efficiency.
• Reliable Sealing: Ensures leak-proof operation, reducing the risk of contamination.

Specifications:

• Size Range: DN40 - DN400
• Pressure Rating: PN10/16
• Body Material: Stainless Steel (CF8M)
• Lining Material: PTFE
• Disc Material: Stainless Steel (CF8M)
• Seat Material: PTFE
• Temperature Range: -20°C to +180°C
• Actuation Type: Pneumatic Actuator (V-Tork)
• End Connection: Wafer type
• Compliance: ISO 5211, API 609
