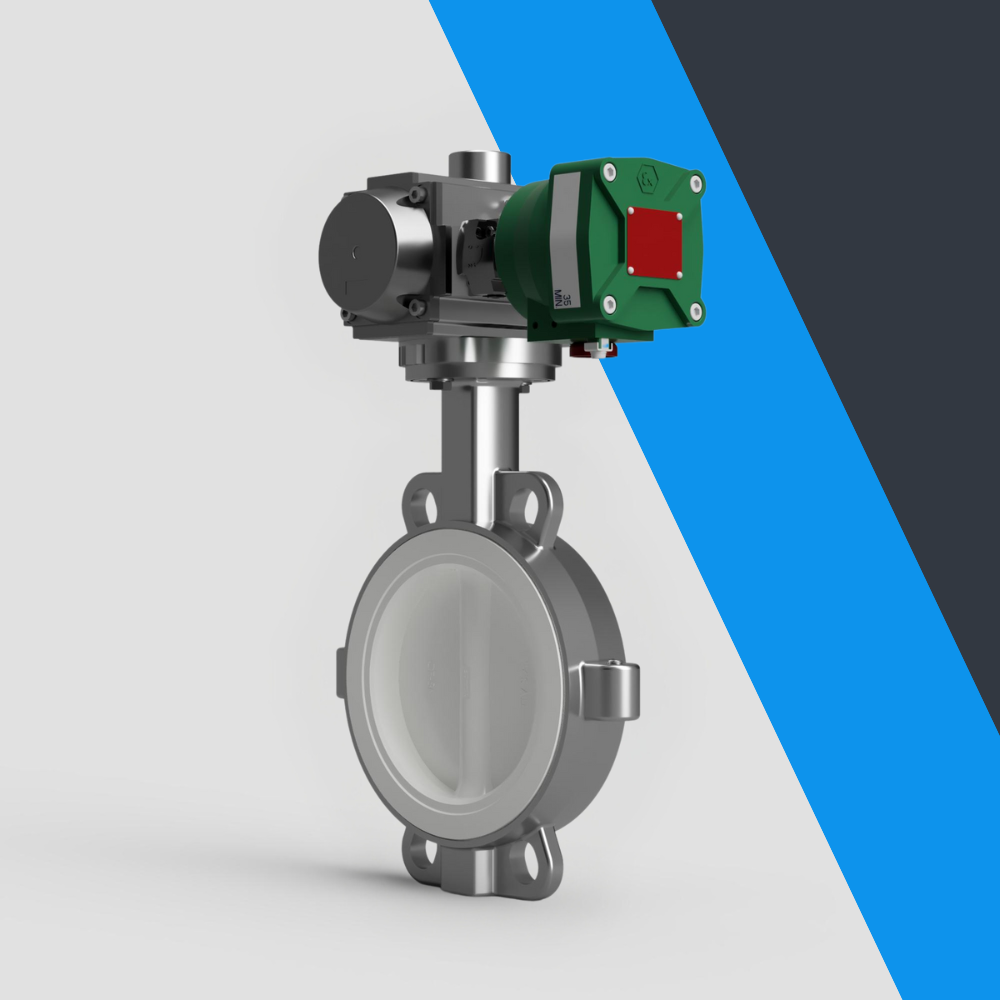

V-Tork Actuated TTV Wafer PTFE Lined Stainless Steel Butterfly Valves (ATEX Area Solenoid)

The V-Tork Actuated TTV Wafer PTFE Lined Stainless Steel Butterfly Valve with ATEX Area Solenoid is engineered for precision control in demanding industrial environments. Designed to handle corrosive media and extreme temperatures, this valve is perfect for applications requiring compliance with ATEX directives. The PTFE lining ensures chemical resistance, while the stainless steel construction offers durability and longevity, making it an ideal choice for both on/off and modulating service in hazardous areas.

Key Features:

• ATEX Certified Solenoid: Safe and reliable operation in potentially explosive atmospheres.
• PTFE Lining: Provides exceptional chemical resistance, extending the valve's life in corrosive environments.
• Stainless Steel Construction: Offers robustness and resistance to corrosion, ensuring long-term performance.
• Compact Wafer Design: Facilitates easy installation between flanges, saving space and reducing weight.
• High Flow Capacity: Optimised for efficient flow control with minimal pressure drop.
• Reliable Actuation: V-Tork pneumatic actuator ensures precise control and rapid response.

Specifications:

• Size Range: DN40 to DN400
• Pressure Rating: PN16
• Temperature Range: -40°C to +180°C
• Material: Body and disc in Stainless Steel 316, PTFE liner
• Actuation: Pneumatic with ATEX Area Solenoid
• Connection: Wafer type, fits between PN10/PN16/ANSI 150 flanges
• Seating: Bubble-tight shut-off, bidirectional
• Certifications: ATEX, CE, ISO 9001
