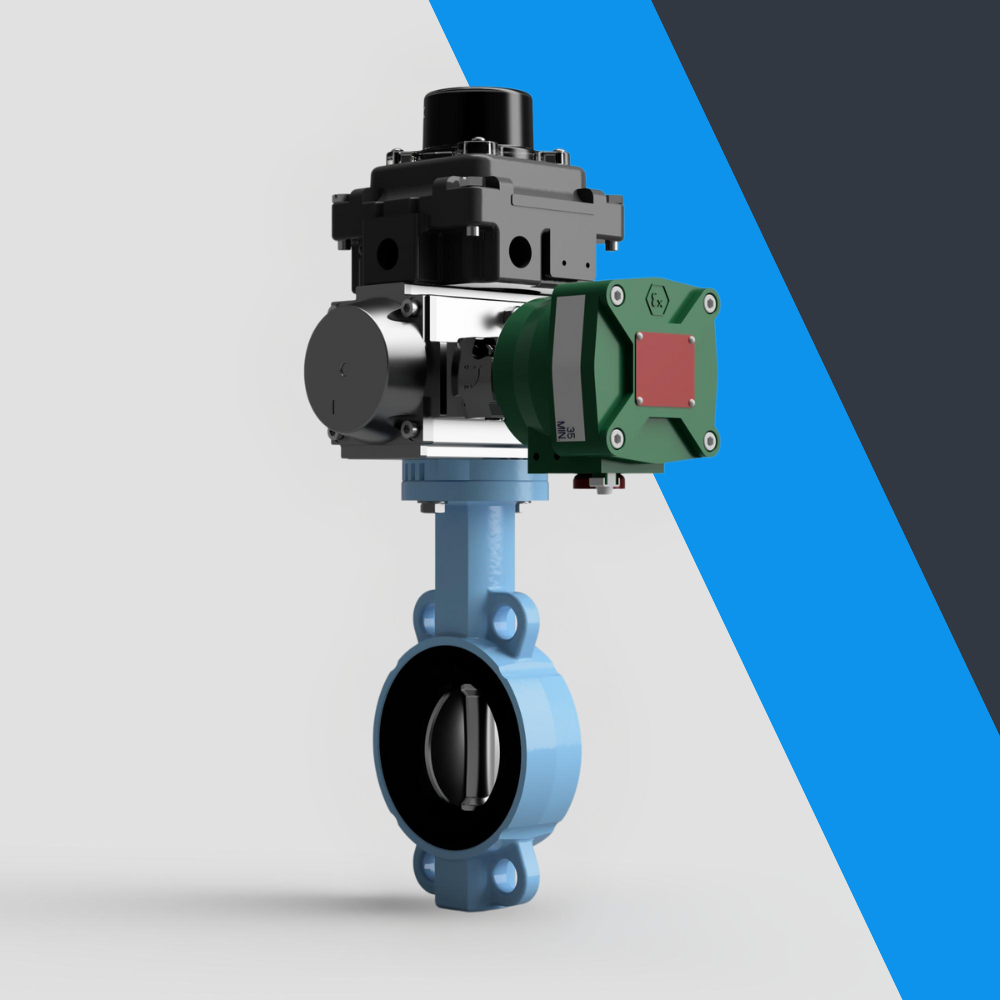

V-Tork Actuated TTV Wafer Ductile Iron Butterfly Valves (ATEX Area Accessories)

The V-Tork Actuated TTV Wafer Ductile Iron Butterfly Valves are engineered for optimal performance in demanding industrial environments. Designed for ATEX-rated areas, these valves provide reliable flow control with enhanced safety features. The robust ductile iron construction ensures durability and longevity, making them ideal for various applications, including oil and gas, chemical processing, and power generation.

Key Features:

• ATEX Certified: Compliant with ATEX regulations, ensuring safe operation in explosive atmospheres.
• Ductile Iron Body: Offers superior strength and resistance to wear, extending the valve's operational life.
• Precision Actuation: Fitted with a V-Tork actuator for precise and efficient flow control.
• Versatile Design: Wafer style allows for easy installation between flanges, reducing maintenance downtime.
• Corrosion Resistance: Enhanced protection against corrosive media, suitable for harsh environments.

Specifications:

• Body Material: Ductile Iron
• Disc Material: Stainless Steel or other specified materials
• Seat Material: EPDM, NBR, Viton
• Pressure Rating: PN10/PN16
• Temperature Range: -10°C to +120°C (depending on seat material)
• Size Range: DN40 to DN400
• Actuation: Electric or Pneumatic (V-Tork Actuator)
• Certification: ATEX II 2 GD c T4
