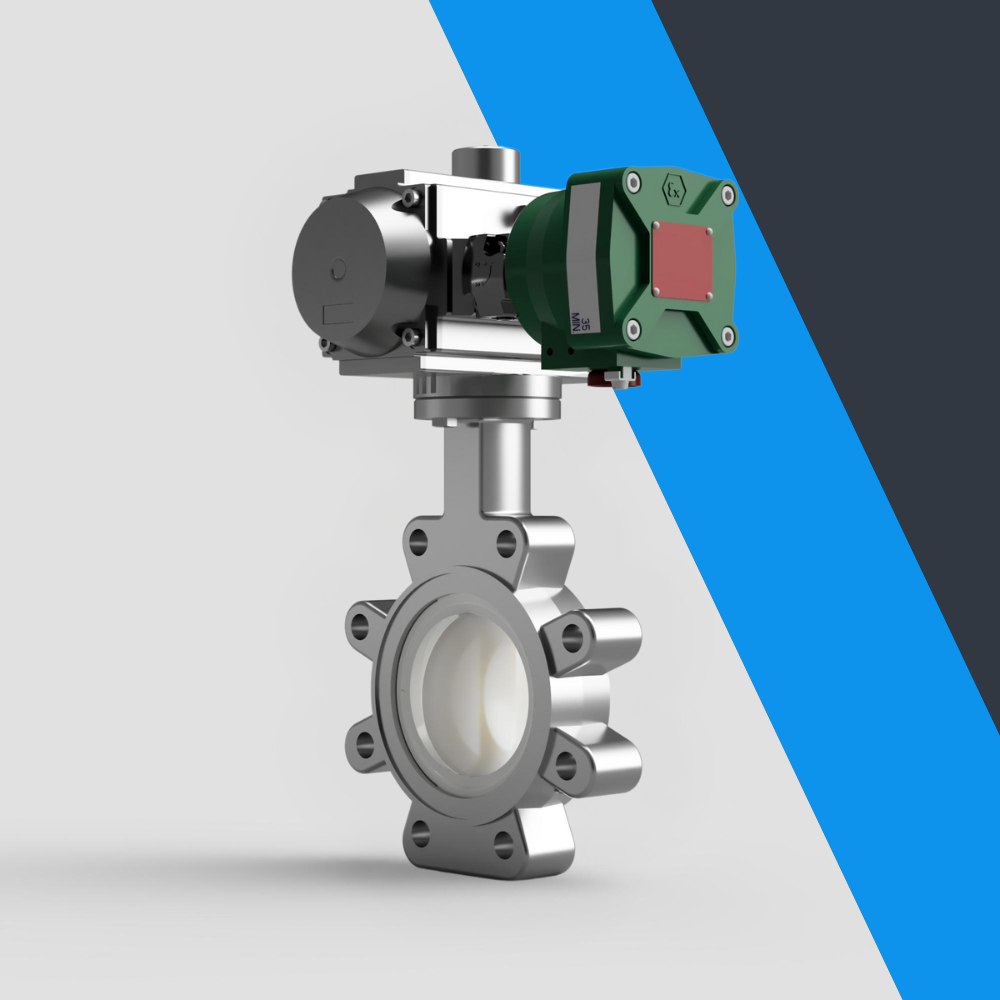

V-Tork Actuated TTV Lugged PTFE Lined Stainless Steel Butterfly Valves (ATEX Area Solenoid)

The V-Tork Actuated TTV Lugged PTFE Lined Stainless Steel Butterfly Valves are engineered for high-performance in demanding environments, particularly within ATEX-rated hazardous areas. These valves feature a robust stainless steel construction combined with a PTFE lining, offering superior corrosion resistance and durability. The integration of a reliable V-Tork actuator and an ATEX Area Solenoid ensures precise and safe operation in potentially explosive atmospheres, making these valves an ideal choice for industries such as chemical processing, oil and gas, and pharmaceuticals.

Key Features:

• ATEX Certified: Suitable for use in explosive atmospheres, meeting rigorous safety standards.
• PTFE Lining: Provides excellent chemical resistance and minimizes maintenance.
• Stainless Steel Body: Enhances durability and corrosion resistance, ideal for harsh environments.
• V-Tork Actuator: Ensures precise control and reliable performance.
• Lugged Design: Allows for easy installation and removal in line maintenance.
• Wide Temperature Range: Operates effectively in various temperature conditions.

Specifications:

• Valve Size: Available in sizes ranging from DN50 to DN300.
• Body Material: Stainless Steel (CF8M).
• Lining Material: PTFE (Polytetrafluoroethylene).
• Actuator Type: V-Tork Pneumatic Actuator.
• Solenoid: ATEX Area Certified Solenoid for hazardous locations.
• Pressure Rating: PN10 / PN16 / ANSI150
• End Connection: Lugged pattern with threaded inserts.
• Standards Compliance: API 609, EN 12266-1, and ATEX Directive 2014/34/EU.
