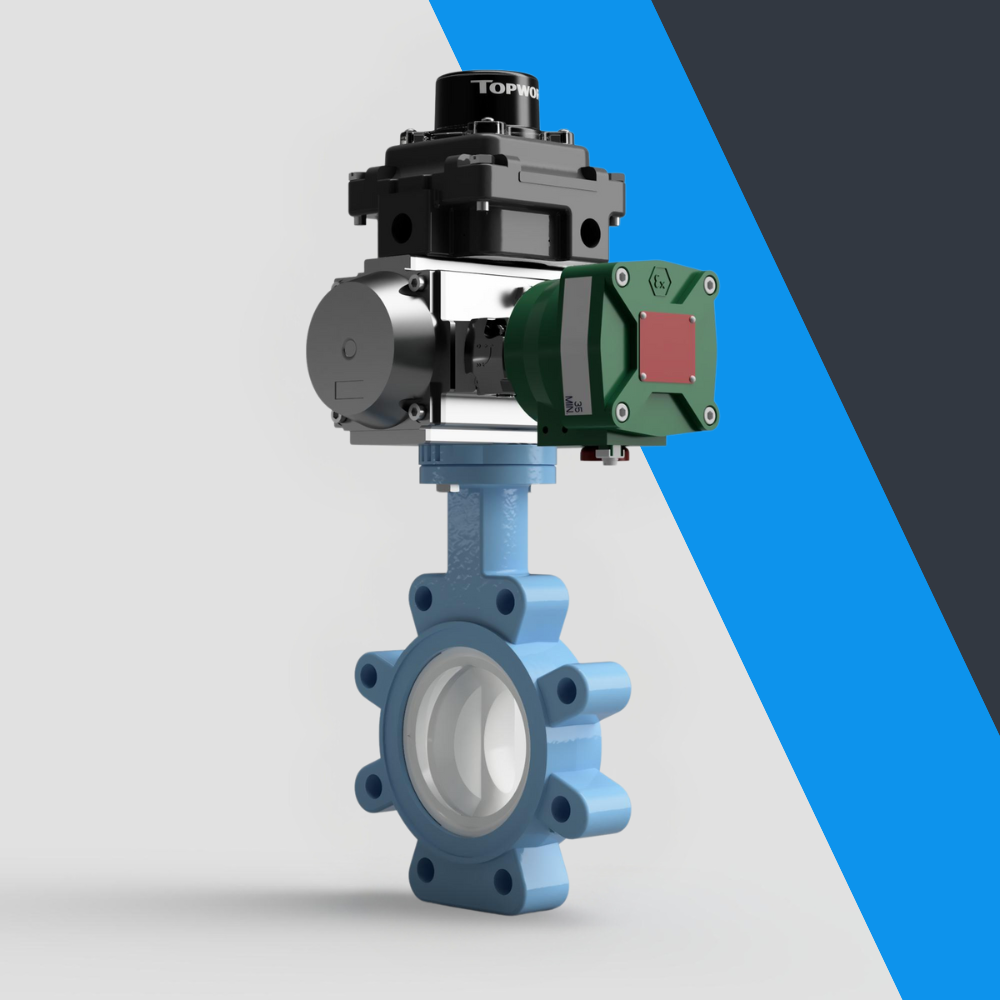

V-Tork Actuated TTV Lugged PTFE Lined Butterfly Valves (ATEX Area Accessories)

The V-Tork Actuated TTV Lugged PTFE Lined Butterfly Valves are specifically designed for applications requiring high-performance flow control and corrosion resistance in demanding environments. Engineered for use in ATEX-rated areas, these valves provide exceptional safety and reliability, making them ideal for industries where hazardous atmospheres are present. With their durable PTFE lining, these butterfly valves offer superior chemical resistance, ensuring long-lasting performance even in the harshest conditions.

Key Features:

• ATEX Certified: Suitable for use in explosive atmospheres, ensuring compliance with strict safety standards.
• PTFE Lining: Provides excellent resistance to a wide range of chemicals, reducing maintenance and prolonging valve life.
• Lugged Design: Enables secure installation and easy maintenance, allowing for the valve to be installed without disassembling the piping system.
• Actuation Options: Equipped with V-Tork actuators, offering precise and reliable control, compatible with a range of accessories for enhanced functionality.
• Corrosion Resistant: The valve’s robust construction and high-quality materials ensure durability in corrosive environments.

Specifications:

• Size Range: DN40 to DN400
• Body Material: Ductile Iron
• Lining Material: PTFE
• Pressure Rating: PN10 / PN16 / ANSI 150
• Actuation Type: Electric or Pneumatic Actuation Available
• ATEX Certification: Ex II 2GD Ex h IIC T6...T4 Gb Ex h IIIC T85°C...T135°C Db
