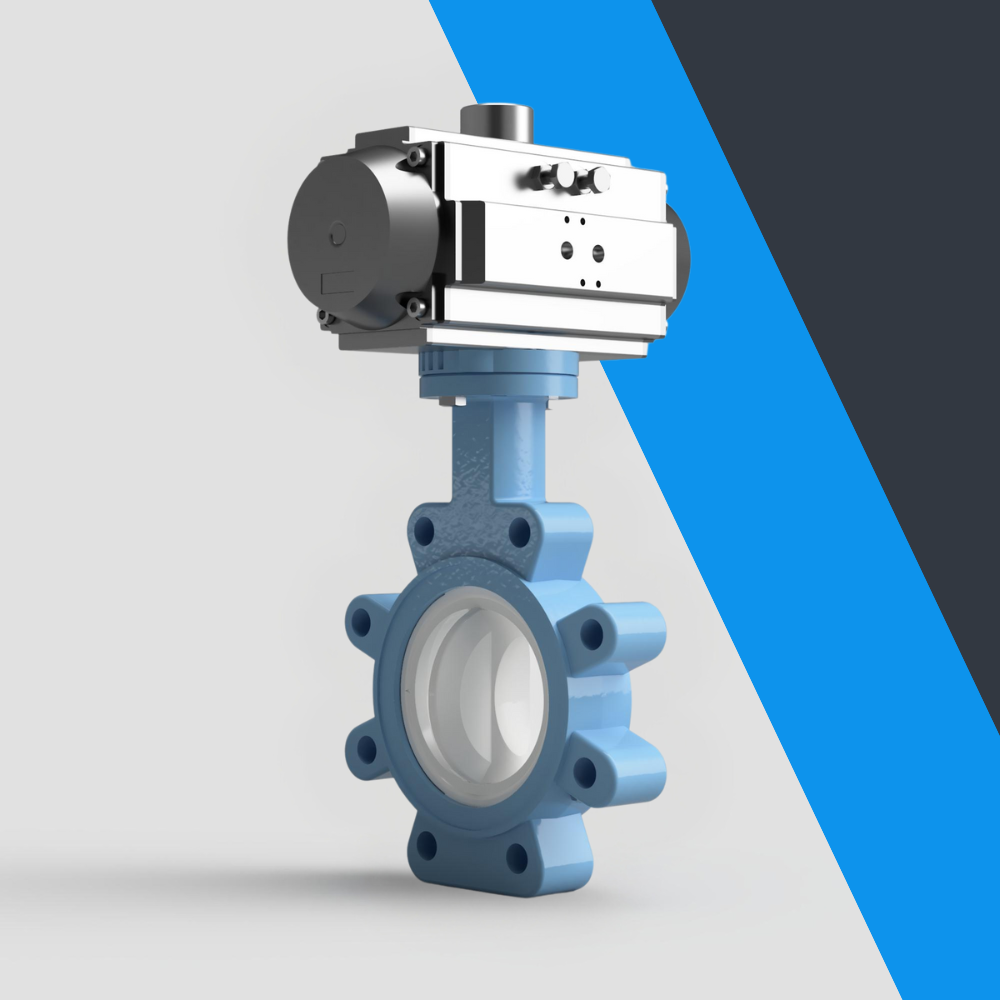

V-Tork Actuated TTV Lugged PTFE Lined Butterfly Valves

The V-Tork Actuated TTV Lugged PTFE Lined Butterfly Valves are engineered for precision control in demanding applications. These valves feature a PTFE-lined disc and body, making them ideal for corrosive media and ensuring long-lasting durability. Designed with a lugged pattern, they offer easy installation and removal, even under pressure. The integration of V-Tork's reliable actuation technology ensures smooth, efficient operation, providing exceptional flow control and tight shutoff in both industrial and commercial environments.

Key Features:

• PTFE Lining: Resistant to corrosion and chemical exposure, extending valve life.
• Lugged Design: Allows for easy maintenance and installation, even in dead-end service.
• V-Tork Actuation: Ensures reliable, automated operation with precise control.
• Wide Temperature Range: Suitable for a variety of applications, from low to high temperatures.
• Tight Shutoff: Delivers excellent sealing performance, preventing leakage.

Specifications:

• Body Material: Ductile Iron with PTFE Lining
• Disc Material: PTFE Lined
• Size Range: DN40 to DN400
• Pressure Rating: PN10, PN16, ANSI 150
• Temperature Range: -20°C to +200°C
• Actuation Options: Electric, Pneumatic
• Connection Type: Lugged
• Certification: ATEX, PED, CE
