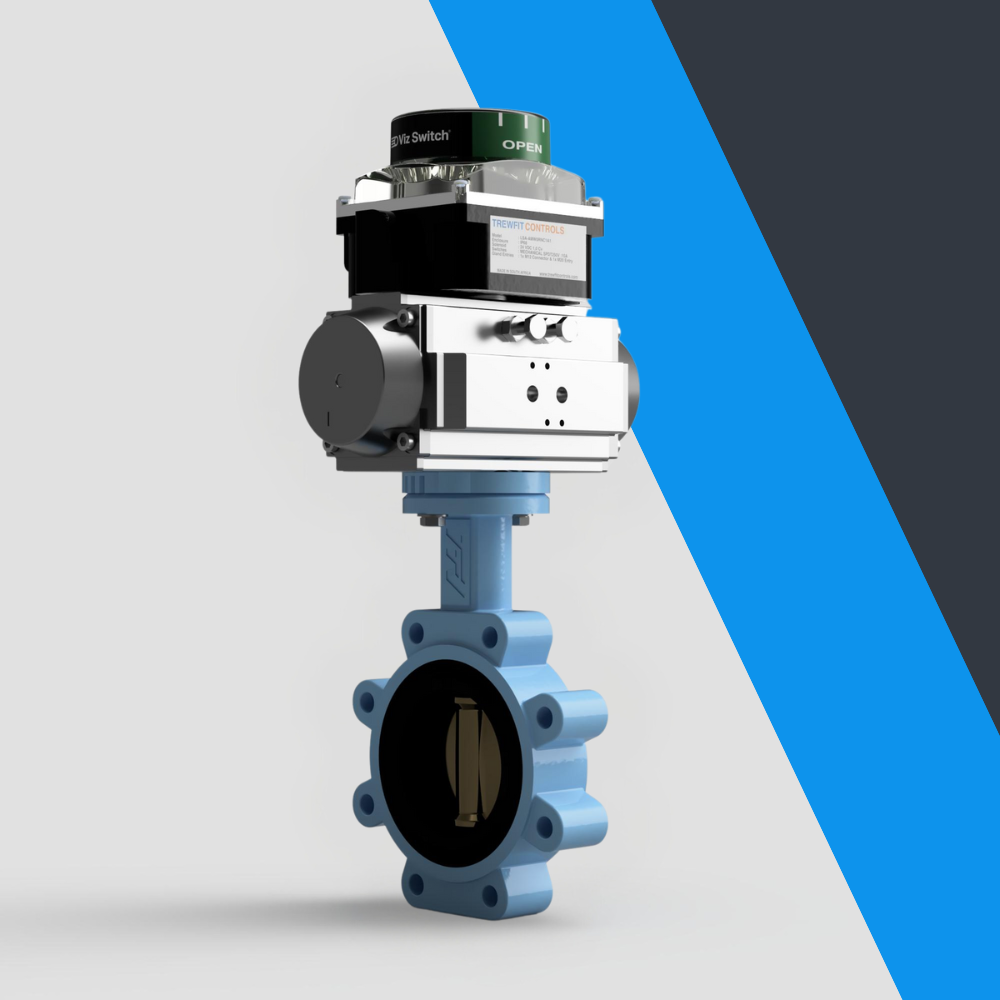

V-Tork Actuated TTV Lugged Bronze Disc Butterfly Valves (Safe Area Switchbox)

The V-Tork Actuated TTV Lugged Bronze Disc Butterfly Valves are designed for robust performance in industrial applications, providing reliable shutoff and flow control. Featuring a durable ductile iron body and a corrosion-resistant bronze disc, this valve is optimized for safe area applications with the addition of a switchbox. Its compatibility with various pressure ratings, such as PN16, PN40, and ANSI150, ensures flexibility for a wide range of uses, while the V-Tork pneumatic actuator guarantees efficient and precise control.

Key Features:

• Durable Construction: Ductile iron body with a corrosion-resistant bronze disc ensures long-lasting performance.
• Versatile Sealing Options: Available with EPDM, Buna, or Viton seats to suit different media and temperature requirements.
• Reliable Actuation: Powered by the V-Tork pneumatic actuator for fast and precise control.
• Multiple Pressure Ratings: Rated for PN16, PN40, and ANSI150, accommodating different pressure systems.
• Lugged Connection: Ensures secure installation and ease of maintenance.

Specifications:

• Body Material: Ductile Iron
• Disc Material: Bronze
• Seat Material: EPDM / Buna / Viton
• Pressure Rating: PN16 / PN40 / ANSI150
• Actuator Type: V-Tork Pneumatic Actuator
• Connection Type: Lugged

This valve is the perfect solution for applications requiring durability, precision, and flexibility in safe areas.
