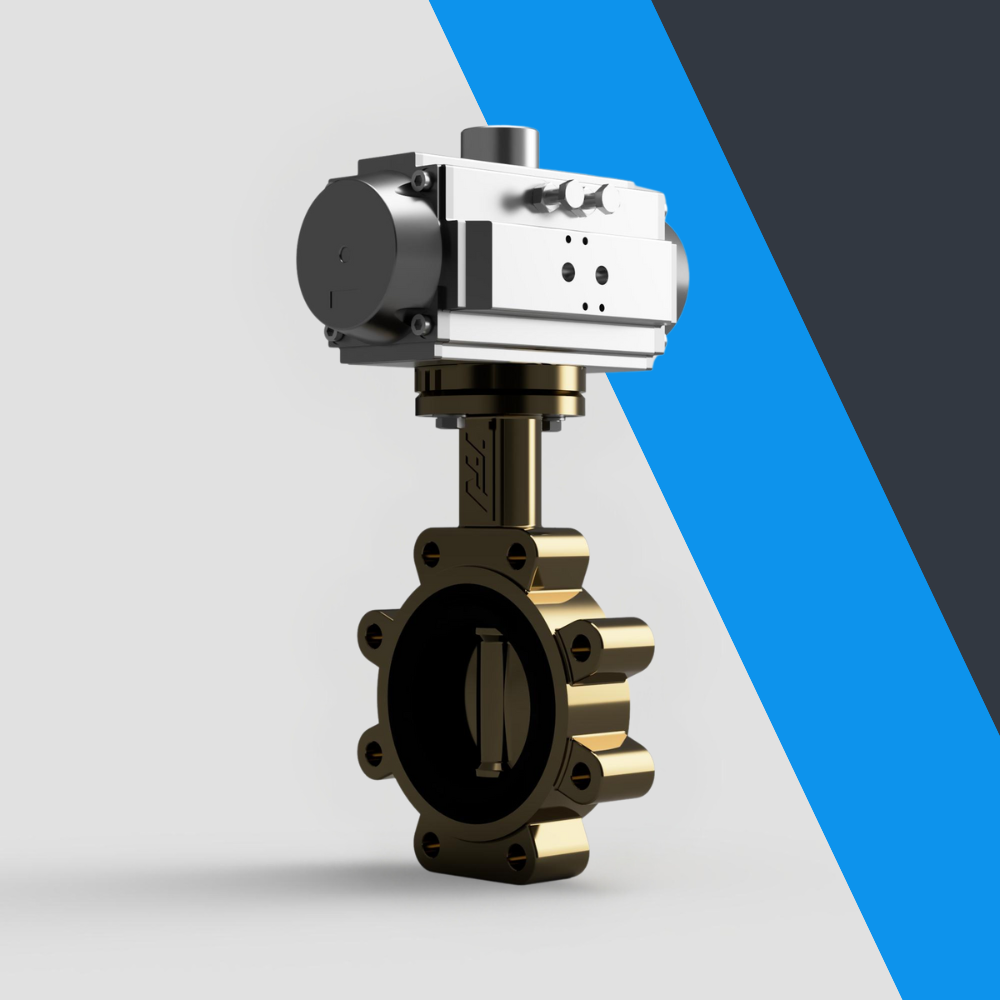

V-Tork Actuated TTV Lugged Aluminium Bronze Butterfly Valves

The V-Tork Actuated TTV Lugged Aluminium Bronze Butterfly Valves are designed for durability and high performance in demanding industrial applications. Equipped with a V-Tork pneumatic actuator, these valves ensure reliable automation, making them ideal for a wide range of flow control requirements. The robust construction with aluminium bronze and a choice of EPDM, Buna, or Viton seats ensures excellent corrosion resistance, particularly in marine and other harsh environments.

Key Features:

• High-performance aluminium bronze body and bronze disc for enhanced durability and corrosion resistance.
• Multiple seat material options (EPDM, Buna, Viton) to suit various media and operating conditions.
• Rated for pressure classes PN16, PN40, and ANSI150, suitable for diverse industry standards.
• Lugged connection type for easy installation and maintenance.
• Actuated by V-Tork pneumatic actuator for smooth, automated control.

Specifications:

• Body Material: Aluminium Bronze
• Disc Material: Bronze
• Seat Material: EPDM / Buna / Viton
• Pressure Rating: PN16 / PN40 / ANSI150
• Actuator Type: V-Tork Pneumatic Actuator
• Connection Type: Lugged
