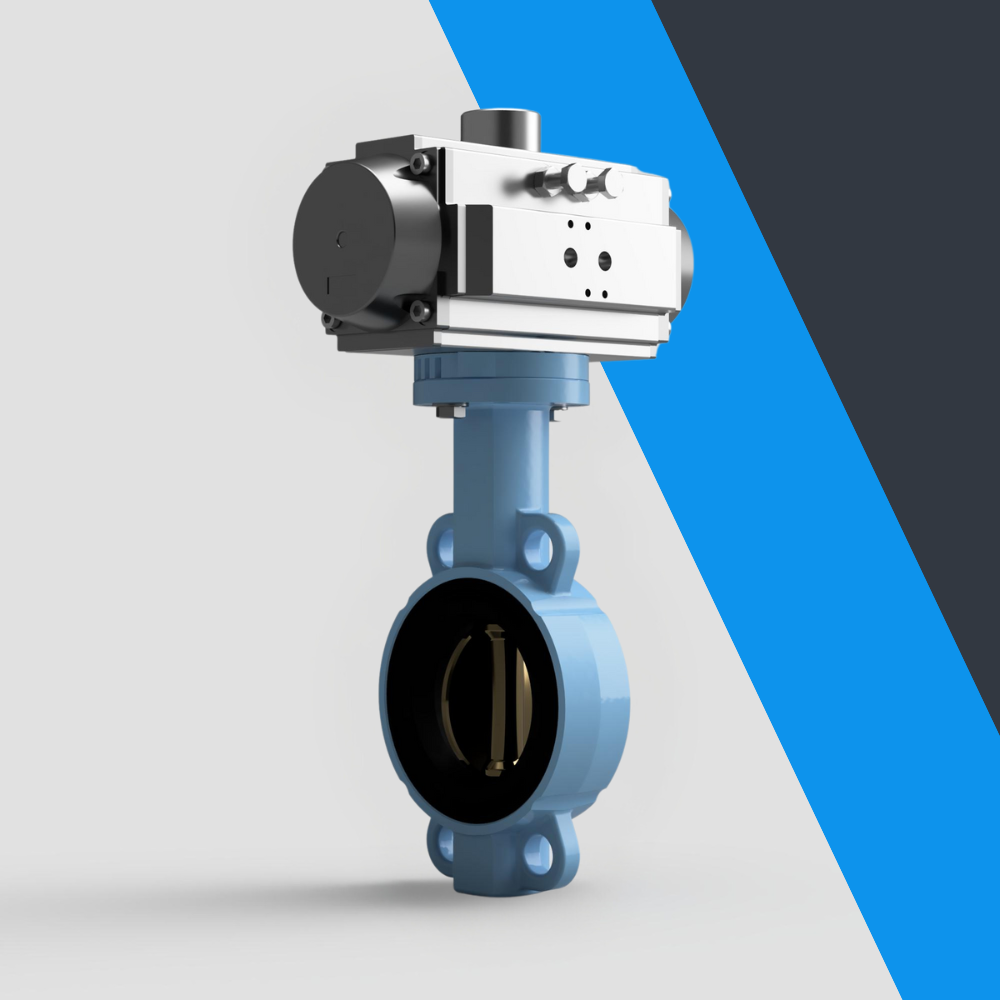

V-Tork Actuated TTV Bronze Disc Wafer Ductile Iron Butterfly Valves

The V-Tork Actuated TTV Bronze Disc Wafer Ductile Iron Butterfly Valves offer reliable and efficient flow control for a wide range of industrial applications. These valves combine the robust design of a ductile iron body with the corrosion-resistant properties of a bronze disc, making them ideal for harsh environments. Paired with V-Tork's precision actuators, these valves ensure precise operation, long-term durability, and minimal maintenance, making them a cost-effective solution for your fluid control needs.

Key Features:

• Durable Construction: Ductile iron body for strength and a bronze disc for enhanced corrosion resistance.
• Precision Actuation: V-Tork actuator provides smooth and accurate valve operation.
• Compact Design: Wafer style allows for easy installation between flanges, saving space.
• Versatile Application: Suitable for use in water treatment, chemical processing, and other industrial sectors.
• Low Maintenance: Designed for long service life with minimal upkeep.

Specifications:

• Valve Type: Wafer Butterfly Valve
• Body Material: Ductile Iron
• Disc Material: Bronze
• Size Range: DN40 to DN400
• Pressure Rating: PN16 / PN40 / ANSI 150
• End Connection: Wafer Type (Fits between PN16/ANSI 150 flanges)
• Seat Material: EPDM / NBR / Viton
• Actuation: V-Tork Pneumatic Actuator
• Operation: On/Off or Modulating
• Standards Compliance: ISO 5211, API 609, EN 593
