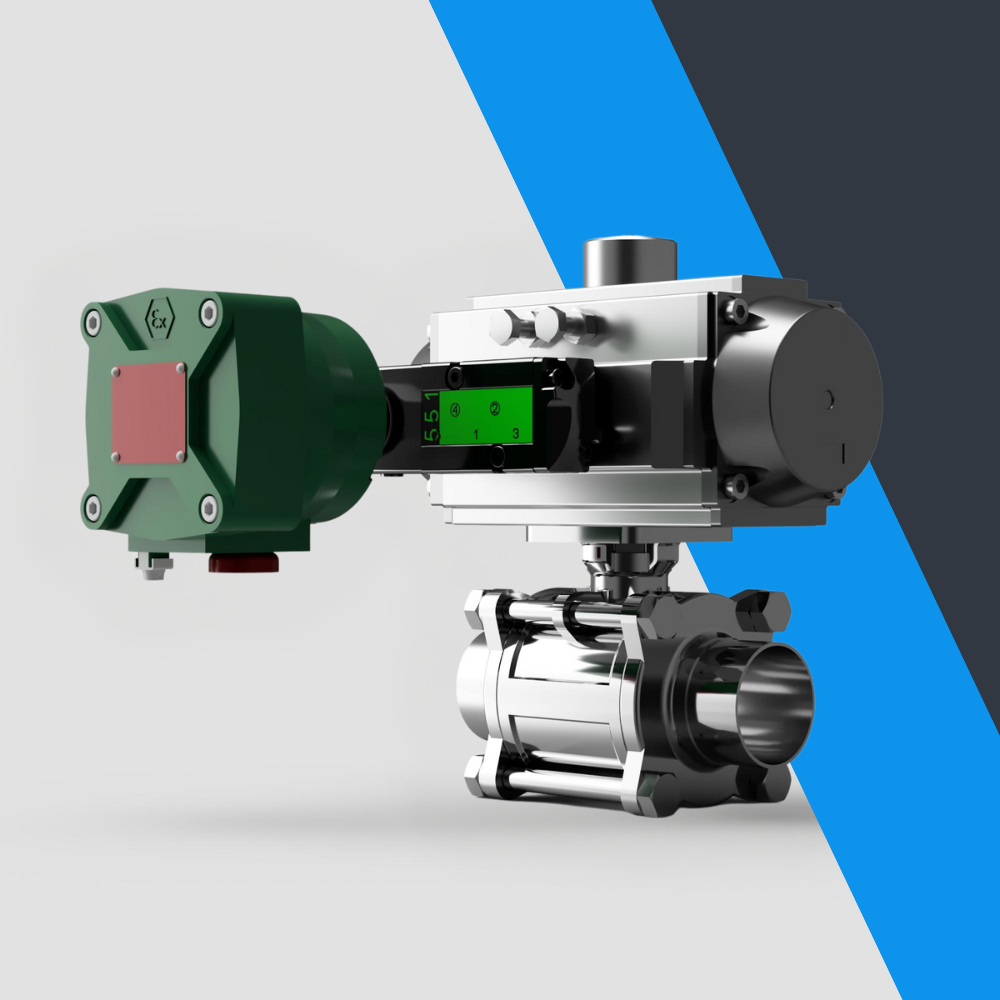

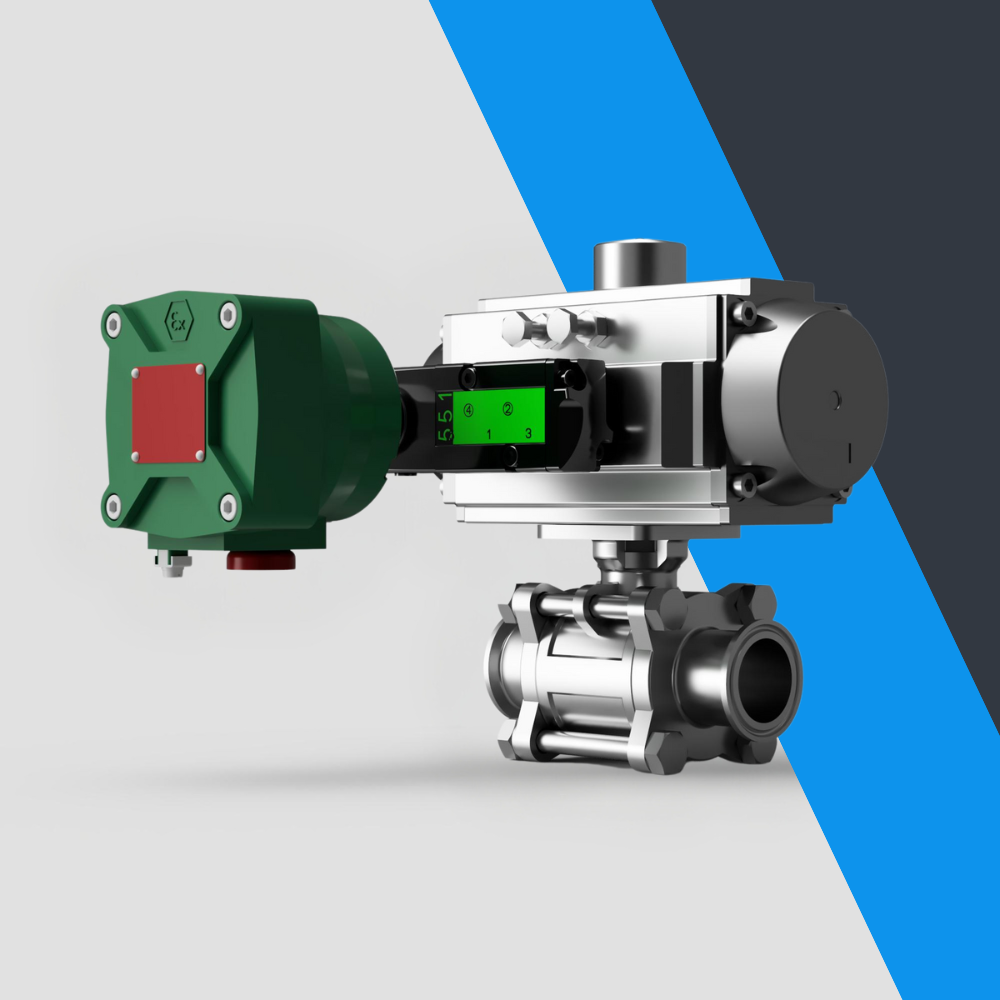

V-Tork Actuated Hygienic Ball Valves (ATEX Area Solenoid)

Designed for demanding hygienic applications, the V-Tork Actuated Hygienic Ball Valves offer superior performance in food, beverage, and pharmaceutical industries. With a robust stainless steel 316 body and ball, paired with a PTFE seat for enhanced chemical resistance and ease of cleaning, these valves ensure hygienic integrity while meeting stringent industry standards. The pneumatic V-Tork actuator offers precise control, and the system is certified for ATEX areas, making it suitable for hazardous environments.

Key Features:

• Size Range: 1/2" to 3" for versatile applications
• Pressure Rating: PN16, ensuring durability under high-pressure conditions
• Material: Stainless Steel 316 body and ball for corrosion resistance and longevity
• Seat Material: PTFE for excellent chemical resistance and easy maintenance
• Connection Types: Available in Tri-Clamp or Butt Weld for flexible hygienic installations
• Actuation Type: Pneumatic V-Tork Actuator, providing efficient and reliable operation
• Certifications: ATEX, FDA, and 3-A approved for safety and compliance in sensitive environments

Specifications:

• Size Range: 1/2" to 3"
• Pressure Rating: PN16
• Material: Stainless Steel 316 body and ball
• Seat Material: PTFE
• Actuation Type: Pneumatic V-Tork Actuator
• Certifications: ATEX, FDA, and 3-A approved
• End Connections: Hygienic Tri-Clamp, Weld OD
