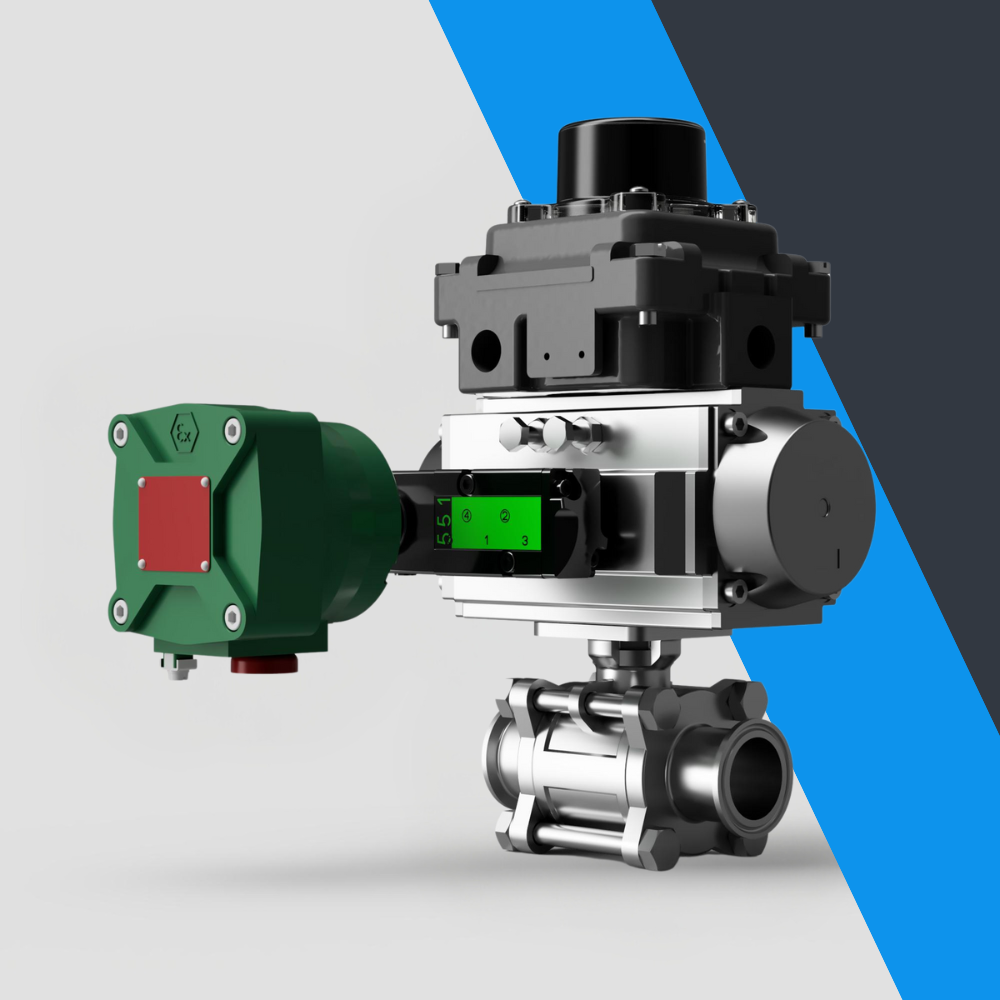

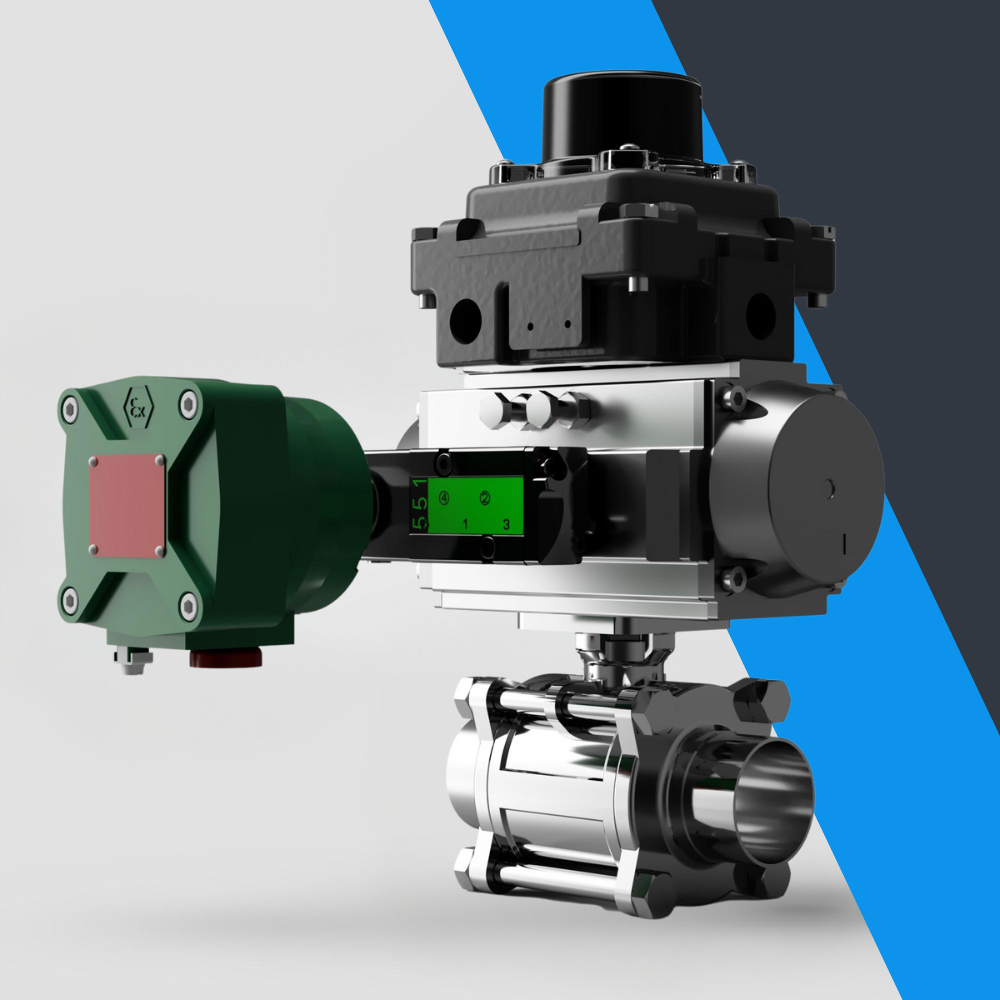

V-Tork Actuated Hygienic Ball Valves (ATEX Area Accessories)

The V-Tork Actuated Hygienic Ball Valves are designed to meet the highest standards of cleanliness and safety in demanding industries. These valves offer reliable performance in applications requiring stringent hygiene controls, such as food and beverage, pharmaceutical, and biotechnology sectors. Featuring ATEX-approved accessories, they are ideal for use in explosive atmospheres, ensuring safety and compliance with regulatory requirements.

Key Features:

• ATEX Certified – Suitable for hazardous environments and explosive atmospheres.
• Hygienic Design – Ensures cleanliness and easy sterilization, ideal for food and pharmaceutical industries.
• Automated Control – Paired with V-Tork actuators for precision and reliable on/off operation.
• Corrosion Resistant – Constructed from stainless steel for longevity and performance in clean environments.
• Smooth Internal Surface – Reduces contamination risks and allows for easy cleaning.
• Compact Design – Ideal for space-limited installations.
• Durable Construction – Withstands high-temperature and high-pressure applications.

Specifications:

• Size Range: 1/2" to 3"
• Pressure Rating: PN16
• Material: Stainless Steel 316 body and ball
• Seat Material: PTFE for chemical resistance and easy cleaning
• Connection Types: Tri-Clamp or Butt Weld
• Actuation Type: Pneumatic V-Tork Actuator
• Certifications: ATEX, FDA, and 3-A approved
• End Connections: Hygienic Tri-Clamp, Butt Weld
